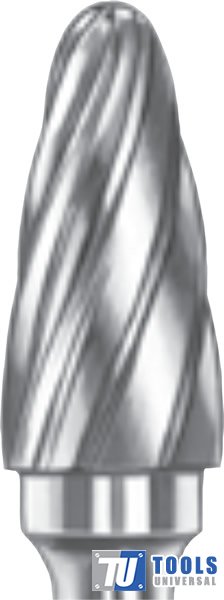

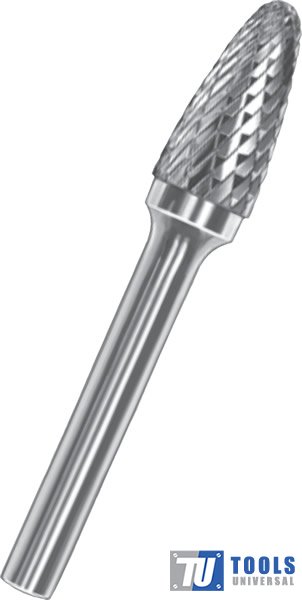

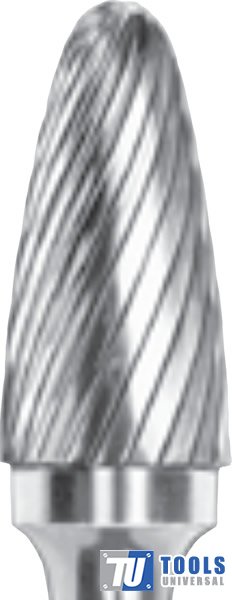

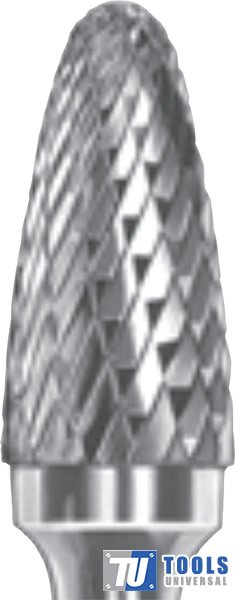

- Carbide rotary bur, Tree Shape
- SERIES NO: 806
- QUALITY RANK: HPP
- PACK TYPE: PACK TYPE:PVC BAG, PLASTIC TUBE, SANDWICH BLISTER, DOUBLE BLISTER, SKIN PACK
- BRAND APPLICATION: OEM BRAND
- APPLICATIONS: TO REMOVE AND POLISH VARIOUS METAL CRATER,DUSTY,ETC.
- CERTIFCATE: PGM,ISO9001
Ideal for grinding and polishing alloyed, unalloyed steel and stainless steel.
Precision removing welding crater on high efficiency.
Tungsten carbide guarantees the best durability for long time
working for different metal and alloy metal polishing work.
| ITEM NO. |
Cutter Diameter d1 |
Length Of Cut l2 |
Shank Diameter d2 |
Overall Length l1 |
Double Cut | Single Cut | Nonferrous Cut |
| ART.806 | ART.806 | ART.806 | |||||
| SF-61 | 3/32" | 1/4" | 3/32" | SGS standard | 13778 | 13775 | - |
| SF-41 | 1/8" | 1/4" | 1/8" | SGS standard | 13678 | 13675 | - |
| SF-11 | 1/8" | 1/2" | 1/4" | SGS standard | 13503 | 13500 | - |
| SF-42 | 1/8" | 1/2" | 1/8" | SGS standard | 13703 | 13700 | - |
| SF-42L2 | 1/8" | 1/2" | 1/8" | SGS standard | 17653 | 17650 | - |
| SF-42L3 | 1/8" | 1/2" | 1/8" | SGS standard | 17678 | 17675 | - |
| SF-81 | 3/16" | 1/2" | 3/16" | SGS standard | 13803 | 13800 | - |
| SF-53 | 3/16" | 1/2" | 1/8" | SGS standard | 13753 | 13750 | - |
| SF-51 | 1/4" | 1/2" | 1/8" | SGS standard | 13728 | 13725 | - |
| SF-1 | 1/4" | 5/8" | 1/4" | SGS standard | 13303 | 13300 | - |
| SF-1L6 | 1/4" | 5/8" | 1/4" | SGS standard | 16553 | 16550 | - |
| SF-1NF | 1/4" | 3/4" | 1/4" | SGS standard | - | - | 19058 |
| SF-3 | 3/8" | 3/4" | 1/4" | SGS standard | 13328 | 13325 | - |
| SF-3L6 | 3/8" | 3/4" | 1/4" | SGS standard | 16578 | 16575 | - |
| SF-3NF | 3/8" | 3/4" | 1/4" | SGS standard | - | - | 19060 |
| SF-4 | 7/16" | 1" | 1/4" | SGS standard | 13353 | 13350 | - |
| SF-13 | 1/2" | 3/4" | 1/4" | SGS standard | 13528 | 13525 | - |
| SF-5 | 1/2" | 1" | 1/4" | SGS standard | 13378 | 13375 | - |
| SF-5L6 | 1/2" | 1" | 1/4" | SGS standard | 16603 | 16600 | - |
| SF-5NF | 1/2" | 1" | 1/4" | SGS standard | - | - | 19062 |
| SF-6 | 5/8" | 1" | 1/4" | SGS standard | 13403 | 13400 | - |
| SF-6NF | 5/8" | 1" | 1/4" | SGS standard | - | - | 19064 |
| SF-7 | 3/4" | 1" | 1/4" | SGS standard | 13453 | 13450 | - |
| SF-14 | 3/4" | 1-1/4" | 1/4" | SGS standard | 13578 | 13575 | - |
| SF-14NF | 3/4" | 1-1/4" | 1/4" | SGS standard | - | - | 19066 |
| SF-14NF3/8 | 3/4" | 1-1/4" | 3/8" | SGS standard | - | - | 19068 |
| SF-15 | 3/4" | 1-1/4" | 1/4" | SGS standard | 13628 | 13625 | - |
| SF-41M | 3mm | 6mm | 3mm | 38mm | 23678 | 23675 | - |
| SF-42M | 3mm | 12.7mm | 3mm | 38mm | 23703 | 23700 | - |
| SF-11M | 3mm | 12.7mm | 6mm | 56mm | 23503 | 23500 | - |
| SF-42ML2 | 3mm | 12.7mm | 3mm | 50mm | 27653 | 27650 | - |
| SF-42ML3 | 3mm | 12.7mm | 3mm | 75mm | 27678 | 27675 | - |
| SF-53M | 5mm | 12.7mm | 3mm | 38mm | 23753 | 23750 | - |
| SF-1M | 6mm | 16mm | 6mm | 50mm | 23303 | 23300 | - |
| SF-1ML6 | 6mm | 12.7mm | 6mm | 163mm | 26553 | 26550 | - |
| SF-1MNF | 6mm | 19mm | 6mm | 50mm | - | - | 29058 |
| SF-51M | 6.3mm | 12.7mm | 3mm | 56mm | 23728 | 23725 | - |
| SF-3M | 9.5mm | 19mm | 6mm | 63mm | 23328 | 23325 | - |
| SF-3ML6 | 9.5mm | 19mm | 6mm | 169mm | 26578 | 26575 | - |
| SF-3MNF | 9.5mm | 19mm | 6mm | 63mm | - | - | 29060 |
| SF-4M | 11mm | 25mm | 6mm | 69mm | 23353 | 23350 | - |
| SF-5MZ | 12mm | 25mm | 6mm | 65mm | 23522 | 23520 | - |
| SF-13M | 12.7mm | 19mm | 6mm | 63mm | 23428 | 23525 | - |
| SF-5M | 12.7mm | 25mm | 6mm | 69mm | 23378 | 23375 | - |
| SF-5ML6 | 12.7mm | 25mm | 6mm | 175mm | 26603 | 26600 | - |
| SF-5MNF | 12.7mm | 25mm | 6mm | 69mm | - | - | 29062 |
| SF-6M | 16mm | 25mm | 6mm | 69mm | 23403 | 23400 | - |
| SF-6MNF | 16mm | 25mm | 6mm | 69mm | - | - | 29064 |
| SF-7M | 19mm | 25mm | 6mm | 69mm | 23453 | 23450 | - |
| SF-14M | 19mm | 32mm | 6mm | 76mm | 23578 | 23575 | - |
| SF-14MNF | 19mm | 32mm | 6mm | 76mm | - | - | 29066 |
| SF-14MNF | 19mm | 32mm | 8mm | 76mm | - | - | 29068 |
| SF-15M | 19mm | 38mm | 6mm | 82mm | 23628 | 23625 | - |
