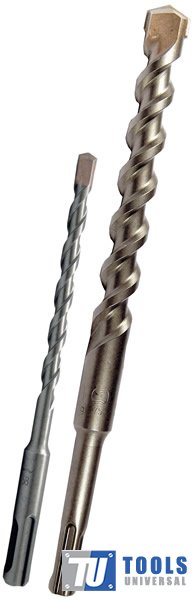

- Hammer drill bit SDS-plus
- SERIES NO: HDDPH020
- QUALITY RANK: MPP
- PACK TYPE: CLIP HANGERPVC BAGPLASTIC TUBE
- BRAND APPLICATION: OEM BRAND
- APPLICATIONS: TO DRILL VARIOUS CONCRETE BRICK MASONRY BUILDING MATERIALS
- CERTIFCATE: PGMISO9001
For all concrete, brick and stone applications.
Effective removal of dust thanks to aggressive tip and spiral design.
Certified by the Prufgemeinschaft Mauerbohrer(PGM) in accordance with the requirements of the Deutsches Institute fur
Bautechnik(DIBt).
German technology on automatic-copper soldering guarantees the best durability of carbide in drilling work.
Long service life and low probability of breakage thanks to the highly effective technique of hardening by blasting.
| ITEM NO. | DIAMETER(MM) | WORKING LENGTH(MM) | OVERALL LENGTH(MM) |
| HDDPH020040110 | 4 | 60 | 110 |
| HDDPH020050110 | 5 | 60 | 110 |
| HDDPH020055110 | 5.5 | 60 | 110 |
| HDDPH020060110 | 6 | 60 | 110 |
| HDDPH020065110 | 6.5 | 60 | 110 |
| HDDPH020070110 | 7 | 60 | 110 |
| HDDPH020080110 | 8 | 60 | 110 |
| HDDPH020090110 | 9 | 60 | 110 |
| HDDPH020100110 | 10 | 60 | 110 |
| HDDPH020110110 | 11 | 60 | 110 |
| HDDPH020040160 | 4 | 110 | 160 |
| HDDPH020050160 | 5 | 110 | 160 |
| HDDPH020055160 | 5.5 | 110 | 160 |
| HDDPH020060160 | 6 | 110 | 160 |
| HDDPH020065160 | 6.5 | 110 | 160 |
| HDDPH020070160 | 7 | 110 | 160 |
| HDDPH020080160 | 8 | 110 | 160 |
| HDDPH020090160 | 9 | 110 | 160 |
| HDDPH020100160 | 10 | 110 | 160 |
| HDDPH020110160 | 11 | 110 | 160 |
| HDDPH020120160 | 12 | 110 | 160 |
| HDDPH020130160 | 13 | 110 | 160 |
| HDDPH020140160 | 14 | 110 | 160 |
| HDDPH020150160 | 15 | 110 | 160 |
| HDDPH020160160 | 16 | 110 | 160 |
| HDDPH020180160 | 18 | 110 | 160 |
| HDDPH020190160 | 19 | 110 | 160 |
| HDDPH020200160 | 20 | 110 | 160 |
| HDDPH020220160 | 22 | 110 | 160 |
| HDDPH020240160 | 24 | 110 | 160 |
| HDDPH020250160 | 25 | 110 | 160 |
| HDDPH020260160 | 26 | 110 | 160 |
| HDDPH020280160 | 28 | 110 | 160 |
| HDDPH020300160 | 30 | 110 | 160 |
| HDDPH020040180 | 4 | 130 | 180 |
| HDDPH020050180 | 5 | 130 | 180 |
| HDDPH020055180 | 5.5 | 130 | 180 |
| HDDPH020060180 | 6 | 130 | 180 |
| HDDPH020065180 | 6.5 | 130 | 180 |
| HDDPH020080180 | 8 | 130 | 180 |
| HDDPH020100180 | 10 | 130 | 180 |
| HDDPH020050210 | 5 | 160 | 210 |
| HDDPH020055210 | 5.5 | 160 | 210 |
| HDDPH020060210 | 6 | 160 | 210 |
| HDDPH020065210 | 6.5 | 160 | 210 |
| HDDPH020070210 | 7 | 160 | 210 |
| HDDPH020080210 | 8 | 160 | 210 |
| HDDPH020090210 | 9 | 160 | 210 |
| HDDPH020100210 | 10 | 160 | 210 |
| HDDPH020110210 | 11 | 160 | 210 |
| HDDPH020120210 | 12 | 160 | 210 |
| HDDPH020130210 | 13 | 160 | 210 |
| HDDPH020140210 | 14 | 160 | 210 |
| HDDPH020150210 | 15 | 160 | 210 |
| HDDPH020160210 | 16 | 160 | 210 |
| HDDPH020180210 | 18 | 160 | 210 |
| HDDPH020190210 | 19 | 160 | 210 |
| HDDPH020200210 | 20 | 160 | 210 |
| HDDPH020220210 | 22 | 160 | 210 |
| HDDPH020240210 | 24 | 160 | 210 |
| HDDPH020250210 | 25 | 160 | 210 |
| HDDPH020260210 | 26 | 160 | 210 |
| HDDPH020280210 | 28 | 160 | 210 |
| HDDPH020300210 | 30 | 160 | 210 |
| HDDPH020050260 | 5 | 210 | 260 |
| HDDPH020055260 | 5.5 | 210 | 260 |
| HDDPH020060260 | 6 | 210 | 260 |
| HDDPH020065260 | 6.5 | 210 | 260 |
| HDDPH020070260 | 7 | 210 | 260 |
| HDDPH020080260 | 8 | 210 | 260 |
| HDDPH020090260 | 9 | 210 | 260 |
| HDDPH020100260 | 10 | 210 | 260 |
| HDDPH020110260 | 11 | 210 | 260 |
| HDDPH020120260 | 12 | 210 | 260 |
| HDDPH020130260 | 13 | 210 | 260 |
| HDDPH020140260 | 14 | 210 | 260 |
| HDDPH020150260 | 15 | 210 | 260 |
| HDDPH020160260 | 16 | 210 | 260 |
| HDDPH020180260 | 18 | 210 | 260 |
| HDDPH020190260 | 19 | 210 | 260 |
| HDDPH020200260 | 20 | 210 | 260 |
| HDDPH020220260 | 22 | 210 | 260 |
| HDDPH020240260 | 24 | 210 | 260 |
| HDDPH020250260 | 25 | 210 | 260 |
| HDDPH020260260 | 26 | 210 | 260 |
| HDDPH020280260 | 28 | 210 | 260 |
| HDDPH020300260 | 30 | 210 | 260 |
| HDDPH020050310 | 5 | 260 | 310 |
| HDDPH020055310 | 5.5 | 260 | 310 |
| HDDPH020060310 | 6 | 260 | 310 |
| HDDPH020065310 | 6.5 | 260 | 310 |
| HDDPH020070310 | 7 | 260 | 310 |
| HDDPH020080310 | 8 | 260 | 310 |
| HDDPH020090310 | 9 | 260 | 310 |
| HDDPH020100310 | 10 | 260 | 310 |
| HDDPH020110310 | 11 | 260 | 310 |
| HDDPH020120310 | 12 | 260 | 310 |
| HDDPH020130310 | 13 | 260 | 310 |
| HDDPH020140310 | 14 | 260 | 310 |
| HDDPH020150310 | 15 | 260 | 310 |
| HDDPH020160310 | 16 | 260 | 310 |
| HDDPH020180310 | 18 | 260 | 310 |
| HDDPH020190310 | 19 | 260 | 310 |
| HDDPH020200310 | 20 | 260 | 310 |
| HDDPH020220310 | 22 | 260 | 310 |
| HDDPH020240310 | 24 | 260 | 310 |
| HDDPH020250310 | 25 | 260 | 310 |
| HDDPH020260310 | 26 | 260 | 310 |
| HDDPH020280310 | 28 | 260 | 310 |
| HDDPH020300310 | 30 | 260 | 310 |
| HDDPH020050350 | 5 | 300 | 350 |
| HDDPH020055350 | 5.5 | 300 | 350 |
| HDDPH020060350 | 6 | 300 | 350 |
| HDDPH020065350 | 6.5 | 300 | 350 |
| HDDPH020070350 | 7 | 300 | 350 |
| HDDPH020080350 | 8 | 300 | 350 |
| HDDPH020090350 | 9 | 300 | 350 |
| HDDPH020100350 | 10 | 300 | 350 |
| HDDPH020110350 | 11 | 300 | 350 |
| HDDPH020120350 | 12 | 300 | 350 |
| HDDPH020130350 | 13 | 300 | 350 |
| HDDPH020140350 | 14 | 300 | 350 |
| HDDPH020150350 | 15 | 300 | 350 |
| HDDPH020160350 | 16 | 300 | 350 |
| HDDPH020180350 | 18 | 300 | 350 |
| HDDPH020190350 | 19 | 300 | 350 |
| HDDPH020200350 | 20 | 300 | 350 |
| HDDPH020220350 | 22 | 300 | 350 |
| HDDPH020240350 | 24 | 300 | 350 |
| HDDPH020250350 | 25 | 300 | 350 |
| HDDPH020260350 | 26 | 300 | 350 |
| HDDPH020280350 | 28 | 300 | 350 |
| HDDPH020300350 | 30 | 300 | 350 |
| HDDPH020050410 | 5 | 360 | 410 |
| HDDPH020055410 | 5.5 | 360 | 410 |
| HDDPH020060410 | 6 | 360 | 410 |
| HDDPH020065410 | 6.5 | 360 | 410 |
| HDDPH020070410 | 7 | 360 | 410 |
| HDDPH020080410 | 8 | 360 | 410 |
| HDDPH020090410 | 9 | 360 | 410 |
| HDDPH020100410 | 10 | 360 | 410 |
| HDDPH020110410 | 11 | 360 | 410 |
| HDDPH020120410 | 12 | 360 | 410 |
| HDDPH020130410 | 13 | 360 | 410 |
| HDDPH020140410 | 14 | 360 | 410 |
| HDDPH020150410 | 15 | 360 | 410 |
| HDDPH020160410 | 16 | 360 | 410 |
| HDDPH020180410 | 18 | 360 | 410 |
| HDDPH020190410 | 19 | 360 | 410 |
| HDDPH020200410 | 20 | 360 | 410 |
| HDDPH020220410 | 22 | 360 | 410 |
| HDDPH020240410 | 24 | 360 | 410 |
| HDDPH020250410 | 25 | 360 | 410 |
| HDDPH020260410 | 26 | 360 | 410 |
| HDDPH020280410 | 28 | 360 | 410 |
| HDDPH020300410 | 30 | 360 | 410 |
| HDDPH020050460 | 5 | 410 | 460 |
| HDDPH020055460 | 5.5 | 410 | 460 |
| HDDPH020060460 | 6 | 410 | 460 |
| HDDPH020065460 | 6.5 | 410 | 460 |
| HDDPH020070460 | 7 | 410 | 460 |
| HDDPH020080460 | 8 | 410 | 460 |
| HDDPH020090460 | 9 | 410 | 460 |
| HDDPH020100460 | 10 | 410 | 460 |
| HDDPH020110460 | 11 | 410 | 460 |
| HDDPH020120450 | 12 | 400 | 450 |
| HDDPH020130450 | 13 | 400 | 450 |
| HDDPH020140450 | 14 | 400 | 450 |
| HDDPH020150450 | 15 | 400 | 450 |
| HDDPH020160450 | 16 | 400 | 450 |
| HDDPH020180450 | 18 | 400 | 450 |
| HDDPH020190450 | 19 | 400 | 450 |
| HDDPH020200450 | 20 | 400 | 450 |
| HDDPH020220450 | 22 | 400 | 450 |
| HDDPH020240450 | 24 | 400 | 450 |
| HDDPH020250450 | 25 | 400 | 450 |
| HDDPH020260450 | 26 | 400 | 450 |
| HDDPH020280450 | 28 | 400 | 450 |
| HDDPH020300450 | 30 | 400 | 450 |
| HDDPH020060550 | 6 | 500 | 550 |
| HDDPH020065550 | 6.5 | 500 | 550 |
| HDDPH020070550 | 7 | 500 | 550 |
| HDDPH020080550 | 8 | 500 | 550 |
| HDDPH020090550 | 9 | 500 | 550 |
| HDDPH020100550 | 10 | 500 | 550 |
| HDDPH020110550 | 11 | 500 | 550 |
| HDDPH020120550 | 12 | 500 | 550 |
| HDDPH020130550 | 13 | 500 | 550 |
| HDDPH020140550 | 14 | 500 | 550 |
| HDDPH020150550 | 15 | 500 | 550 |
| HDDPH020160550 | 16 | 500 | 550 |
| HDDPH020180550 | 18 | 500 | 550 |
| HDDPH020190550 | 19 | 500 | 550 |
| HDDPH020200550 | 20 | 500 | 550 |
| HDDPH020220550 | 22 | 500 | 550 |
| HDDPH020240550 | 24 | 500 | 550 |
| HDDPH020250550 | 25 | 500 | 550 |
| HDDPH020260550 | 26 | 500 | 550 |
| HDDPH020280550 | 28 | 500 | 550 |
| HDDPH020300550 | 30 | 500 | 550 |
| HDDPH020060600 | 6 | 550 | 600 |
| HDDPH020065600 | 6.5 | 550 | 600 |
| HDDPH020070600 | 7 | 550 | 600 |
| HDDPH020080600 | 8 | 550 | 600 |
| HDDPH020090600 | 9 | 550 | 600 |
| HDDPH020100600 | 10 | 550 | 600 |
| HDDPH020110600 | 11 | 550 | 600 |
| HDDPH020120600 | 12 | 550 | 600 |
| HDDPH020130600 | 13 | 550 | 600 |
| HDDPH020140600 | 14 | 550 | 600 |
| HDDPH020150600 | 15 | 550 | 600 |
| HDDPH020160600 | 16 | 550 | 600 |
| HDDPH020180600 | 18 | 550 | 600 |
| HDDPH020190600 | 19 | 550 | 600 |
| HDDPH020200600 | 20 | 550 | 600 |
| HDDPH020220600 | 22 | 550 | 600 |
| HDDPH020240600 | 24 | 550 | 600 |
| HDDPH020250600 | 25 | 550 | 600 |
| HDDPH020260600 | 26 | 550 | 600 |
| HDDPH020280600 | 28 | 550 | 600 |
| HDDPH020300600 | 30 | 550 | 600 |
| HDDPH020080800 | 8 | 750 | 800 |
| HDDPH020090800 | 9 | 750 | 800 |
| HDDPH020100800 | 10 | 750 | 800 |
| HDDPH020110800 | 11 | 750 | 800 |
| HDDPH020120800 | 12 | 750 | 800 |
| HDDPH020130800 | 13 | 750 | 800 |
| HDDPH020140800 | 14 | 750 | 800 |
| HDDPH020150800 | 15 | 750 | 800 |
| HDDPH020160800 | 16 | 750 | 800 |
| HDDPH020180800 | 18 | 750 | 800 |
| HDDPH020190800 | 19 | 750 | 800 |
| HDDPH020200800 | 20 | 750 | 800 |
| HDDPH020220800 | 22 | 750 | 800 |
| HDDPH020240800 | 24 | 750 | 800 |
| HDDPH020250800 | 25 | 750 | 800 |
| HDDPH020260800 | 26 | 750 | 800 |
| HDDPH020280800 | 28 | 750 | 800 |
| HDDPH020300800 | 30 | 750 | 800 |
| HDDPH020101000 | 10 | 950 | 1000 |
| HDDPH020111000 | 11 | 950 | 1000 |
| HDDPH020121000 | 12 | 950 | 1000 |
| HDDPH020131000 | 13 | 950 | 1000 |
| HDDPH020141000 | 14 | 950 | 1000 |
| HDDPH020151000 | 15 | 950 | 1000 |
| HDDPH020161000 | 16 | 950 | 1000 |
| HDDPH020181000 | 18 | 950 | 1000 |
| HDDPH020191000 | 19 | 950 | 1000 |
| HDDPH020201000 | 20 | 950 | 1000 |
| HDDPH020221000 | 22 | 950 | 1000 |
| HDDPH020241000 | 24 | 950 | 1000 |
| HDDPH020251000 | 25 | 950 | 1000 |
| HDDPH020261000 | 26 | 950 | 1000 |
| HDDPH020281000 | 28 | 950 | 1000 |
| HDDPH020301000 | 30 | 950 | 1000 |
