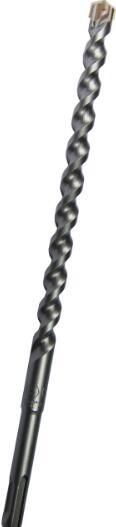

- Hammer drill bit SDS-plus
- SERIES NO: HDYPU040
- QUALITY RANK: MPP
- PACK TYPE: PVC BAGCOLOR BOXDOUBLE BLISTERSKIN PACKSINGLE BLISTER
- BRAND APPLICATION: OEM BRAND
- APPLICATIONS: TO DRILL VARIOUS CONCRETEBRICKSTONEMASONRY BUILDING MATERIALSETC
- CERTIFCATE: PGMISO9001
4 Cutter Cross Carbide tipped faster for all concrete, brick and stone applications.
Certified by the Prufgemeinschaft Mauerbohrer(PGM) in accordance with the requirements of the Deutsches Institute fur
Bautechnik(DIBt).
German technology on automatic-copper soldering guarantees the best durability of carbide in drilling work.
Long service life and low probability of breakage thanks to the highly effective technique of hardening by blasting.
| ITEM NO. | DIAMETER(MM) | WORKING LENGTH(MM) | OVERALL LENGTH(MM) |
| HDYPU040060110 | 6 | 60 | 110 |
| HDYPU040060160 | 6 | 110 | 160 |
| HDYPU040060180 | 6 | 130 | 180 |
| HDYPU040060210 | 6 | 160 | 210 |
| HDYPU040060260 | 6 | 210 | 260 |
| HDYPU040060310 | 6 | 260 | 310 |
| HDYPU040060350 | 6 | 300 | 350 |
| HDYPU040060450 | 6 | 400 | 450 |
| HDYPU040065110 | 6.5 | 60 | 110 |
| HDYPU040065160 | 6.5 | 110 | 160 |
| HDYPU040065180 | 6.5 | 130 | 180 |
| HDYPU040065210 | 6.5 | 160 | 210 |
| HDYPU040065260 | 6.5 | 210 | 260 |
| HDYPU040065310 | 6.5 | 260 | 310 |
| HDYPU040065450 | 6.5 | 400 | 450 |
| HDYPU040065550 | 6.5 | 500 | 550 |
| HDYPU040080110 | 8 | 60 | 110 |
| HDYPU040080160 | 8 | 110 | 160 |
| HDYPU040080180 | 8 | 130 | 180 |
| HDYPU040080210 | 8 | 160 | 210 |
| HDYPU040080260 | 8 | 210 | 260 |
| HDYPU040080310 | 8 | 260 | 310 |
| HDYPU040080450 | 8 | 400 | 450 |
| HDYPU040080600 | 8 | 550 | 600 |
| HDYPU040090110 | 9 | 60 | 110 |
| HDYPU040090160 | 9 | 110 | 160 |
| HDYPU040090210 | 9 | 160 | 210 |
| HDYPU040090260 | 9 | 210 | 260 |
| HDYPU040090310 | 9 | 260 | 310 |
| HDYPU040090450 | 9 | 400 | 450 |
| HDYPU040100110 | 10 | 60 | 110 |
| HDYPU040100160 | 10 | 110 | 160 |
| HDYPU040100180 | 10 | 130 | 180 |
| HDYPU040100210 | 10 | 160 | 210 |
| HDYPU040100260 | 10 | 210 | 260 |
| HDYPU040100350 | 10 | 300 | 350 |
| HDYPU040100410 | 10 | 360 | 410 |
| HDYPU040100600 | 10 | 550 | 600 |
| HDYPU040100800 | 10 | 750 | 800 |
| HDYPU040101000 | 10 | 950 | 1000 |
| HDYPU040110160 | 11 | 110 | 160 |
| HDYPU040110210 | 11 | 160 | 210 |
| HDYPU040110260 | 11 | 210 | 260 |
| HDYPU040110310 | 11 | 260 | 310 |
| HDYPU040110450 | 11 | 400 | 450 |
| HDYPU040120110 | 12 | 60 | 110 |
| HDYPU040120160 | 12 | 110 | 160 |
| HDYPU040120210 | 12 | 160 | 210 |
| HDYPU040120260 | 12 | 210 | 260 |
| HDYPU040120310 | 12 | 260 | 310 |
| HDYPU040120400 | 12 | 350 | 400 |
| HDYPU040120450 | 12 | 400 | 450 |
| HDYPU040120600 | 12 | 550 | 600 |
| HDYPU040120800 | 12 | 750 | 800 |
| HDYPU040121000 | 12 | 950 | 1000 |
| HDYPU040130110 | 13 | 60 | 110 |
| HDYPU040130160 | 13 | 110 | 160 |
| HDYPU040130210 | 13 | 160 | 210 |
| HDYPU040130260 | 13 | 210 | 260 |
| HDYPU040130310 | 13 | 260 | 310 |
| HDYPU040130400 | 13 | 350 | 400 |
| HDYPU040130450 | 13 | 400 | 450 |
| HDYPU040140160 | 14 | 110 | 160 |
| HDYPU040140180 | 14 | 130 | 180 |
| HDYPU040140210 | 14 | 160 | 210 |
| HDYPU040140260 | 14 | 210 | 260 |
| HDYPU040140310 | 14 | 260 | 310 |
| HDYPU040140400 | 14 | 350 | 400 |
| HDYPU040140450 | 14 | 400 | 450 |
| HDYPU040140600 | 14 | 550 | 600 |
| HDYPU040140800 | 14 | 750 | 800 |
| HDYPU040141000 | 14 | 950 | 1000 |
| HDYPU040150160 | 15 | 110 | 160 |
| HDYPU040150210 | 15 | 160 | 210 |
| HDYPU040150260 | 15 | 210 | 260 |
| HDYPU040150310 | 15 | 260 | 310 |
| HDYPU040150400 | 15 | 350 | 400 |
| HDYPU040150450 | 15 | 400 | 450 |
| HDYPU040160160 | 16 | 110 | 160 |
| HDYPU040160180 | 16 | 130 | 180 |
| HDYPU040160210 | 16 | 160 | 210 |
| HDYPU040160260 | 16 | 210 | 260 |
| HDYPU040160310 | 16 | 260 | 310 |
| HDYPU040160400 | 16 | 350 | 400 |
| HDYPU040160450 | 16 | 400 | 450 |
| HDYPU040160600 | 16 | 550 | 600 |
| HDYPU040160800 | 16 | 750 | 800 |
| HDYPU040161000 | 16 | 950 | 1000 |
| HDYPU040180160 | 18 | 110 | 160 |
| HDYPU040180210 | 18 | 160 | 210 |
| HDYPU040180260 | 18 | 210 | 260 |
| HDYPU040180310 | 18 | 260 | 310 |
| HDYPU040180400 | 18 | 350 | 400 |
| HDYPU040180450 | 18 | 400 | 450 |
| HDYPU040180600 | 18 | 550 | 600 |
| HDYPU040180800 | 18 | 750 | 800 |
| HDYPU040181000 | 18 | 950 | 1000 |
| HDYPU040200210 | 20 | 160 | 210 |
| HDYPU040200260 | 20 | 210 | 260 |
| HDYPU040200310 | 20 | 260 | 310 |
| HDYPU040200400 | 20 | 350 | 400 |
| HDYPU040200450 | 20 | 400 | 450 |
| HDYPU040200600 | 20 | 550 | 600 |
| HDYPU040200800 | 20 | 750 | 800 |
| HDYPU040201000 | 20 | 950 | 1000 |
| HDYPU040220210 | 22 | 160 | 210 |
| HDYPU040220260 | 22 | 210 | 260 |
| HDYPU040220310 | 22 | 260 | 310 |
| HDYPU040220400 | 22 | 350 | 400 |
| HDYPU040230450 | 23 | 400 | 450 |
| HDYPU040240260 | 24 | 210 | 260 |
| HDYPU040240310 | 24 | 260 | 310 |
| HDYPU040240400 | 24 | 350 | 400 |
| HDYPU040240450 | 24 | 400 | 450 |
| HDYPU040240600 | 24 | 550 | 600 |
| HDYPU040240800 | 24 | 750 | 800 |
| HDYPU040250260 | 25 | 210 | 260 |
| HDYPU040250310 | 25 | 260 | 310 |
| HDYPU040250400 | 25 | 350 | 400 |
| HDYPU040250450 | 25 | 400 | 450 |
| HDYPU040250600 | 25 | 550 | 600 |
| HDYPU040251000 | 25 | 950 | 1000 |
| HDYPU040260260 | 26 | 210 | 260 |
| HDYPU040260310 | 26 | 260 | 310 |
| HDYPU040260400 | 26 | 350 | 400 |
| HDYPU040260450 | 26 | 400 | 450 |
| HDYPU040280260 | 28 | 210 | 260 |
| HDYPU040280450 | 28 | 400 | 450 |
