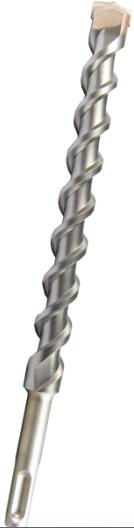

- Hammer drill bit SDS-plus
- SERIES NO: HDCPH021
- QUALITY RANK: HPP
- PACK TYPE: PVC BAGCOLOR BOXDOUBLE BLISTERSKIN PACKSINGLE BLISTER
- BRAND APPLICATION: OEM BRAND
- APPLICATIONS: TO DRILL VARIOUS CONCRETEBRICKSTONEMASONRY BUILDING MATERIALSETC
- CERTIFCATE: PGMISO9001
ANSI standard with Tapcon hex shank professional for all concrete, brick and stone applications.
Effective removal of dust thanks to aggressive tip and spiral design.
German technology on automatic-copper soldering guarantees the best durability of carbide in drilling work.
Long service life and low probability of breakage thanks to the highly effective technique of hardening by blasting.
| ITEM NO. | DIAMETER(MM) | WORKING LENGTH(MM) | OVERALL LENGTH(MM) |
| HDCPH021040110 | 4 | 60 | 110 |
| HDCPH021040160 | 4 | 110 | 160 |
| HDCPH021040180 | 4 | 130 | 180 |
| HDCPH021050110 | 5 | 60 | 110 |
| HDCPH021050160 | 5 | 110 | 160 |
| HDCPH021050180 | 5 | 130 | 180 |
| HDCPH021050210 | 5 | 160 | 210 |
| HDCPH021050260 | 5 | 210 | 260 |
| HDCPH021050310 | 5 | 260 | 310 |
| HDCPH021050450 | 5 | 400 | 450 |
| HDCPH021055110 | 5.5 | 60 | 110 |
| HDCPH021055160 | 5.5 | 110 | 160 |
| HDCPH021055210 | 5.5 | 160 | 210 |
| HDCPH021055260 | 5.5 | 210 | 260 |
| HDCPH021060110 | 6 | 60 | 110 |
| HDCPH021060160 | 6 | 110 | 160 |
| HDCPH021060180 | 6 | 130 | 180 |
| HDCPH021060210 | 6 | 160 | 210 |
| HDCPH021060260 | 6 | 210 | 260 |
| HDCPH021060310 | 6 | 260 | 310 |
| HDCPH021060350 | 6 | 300 | 350 |
| HDCPH021060450 | 6 | 400 | 450 |
| HDCPH021065110 | 6.5 | 60 | 110 |
| HDCPH021065160 | 6.5 | 110 | 160 |
| HDCPH021065180 | 6.5 | 130 | 180 |
| HDCPH021065210 | 6.5 | 160 | 210 |
| HDCPH021065260 | 6.5 | 210 | 260 |
| HDCPH021065310 | 6.5 | 260 | 310 |
| HDCPH021065450 | 6.5 | 400 | 450 |
| HDCPH021065550 | 6.5 | 500 | 550 |
| HDCPH021070110 | 7 | 60 | 110 |
| HDCPH021070160 | 7 | 110 | 160 |
| HDCPH021070210 | 7 | 160 | 210 |
| HDCPH021080110 | 8 | 60 | 110 |
| HDCPH021080160 | 8 | 110 | 160 |
| HDCPH021080180 | 8 | 130 | 180 |
| HDCPH021080210 | 8 | 160 | 210 |
| HDCPH021080260 | 8 | 210 | 260 |
| HDCPH021080310 | 8 | 160 | 310 |
| HDCPH021080450 | 8 | 400 | 450 |
| HDCPH021080600 | 8 | 550 | 600 |
| HDCPH021090110 | 9 | 60 | 110 |
| HDCPH021090160 | 9 | 110 | 160 |
| HDCPH021090210 | 9 | 160 | 210 |
| HDCPH021090260 | 9 | 210 | 260 |
| HDCPH021090310 | 9 | 260 | 310 |
| HDCPH021090450 | 9 | 400 | 450 |
| HDCPH021095110 | 9.5 | 60 | 110 |
| HDCPH021095160 | 9.5 | 110 | 160 |
| HDCPH021095210 | 9.5 | 160 | 210 |
| HDCPH021095260 | 9.5 | 210 | 260 |
| HDCPH021095310 | 9.5 | 260 | 310 |
| HDCPH021095450 | 9.5 | 400 | 450 |
| HDCPH021095600 | 9.5 | 550 | 600 |
| HDCPH021100110 | 10 | 60 | 110 |
| HDCPH021100160 | 10 | 110 | 160 |
| HDCPH021100180 | 10 | 130 | 180 |
| HDCPH021100210 | 10 | 160 | 210 |
| HDCPH021100260 | 10 | 210 | 260 |
| HDCPH021100350 | 10 | 300 | 350 |
| HDCPH021100410 | 10 | 360 | 410 |
| HDCPH021100600 | 10 | 550 | 600 |
| HDCPH021100800 | 10 | 750 | 800 |
| HDCPH021101000 | 10 | 950 | 1000 |
| HDCPH021110160 | 11 | 110 | 160 |
| HDCPH021110210 | 11 | 160 | 210 |
| HDCPH021110260 | 11 | 210 | 260 |
| HDCPH021110310 | 11 | 260 | 310 |
| HDCPH021110450 | 11 | 400 | 450 |
| HDCPH021120110 | 12 | 60 | 110 |
| HDCPH021120160 | 12 | 110 | 160 |
| HDCPH021120210 | 12 | 160 | 210 |
| HDCPH021120260 | 12 | 210 | 260 |
| HDCPH021120310 | 12 | 260 | 310 |
| HDCPH021120400 | 12 | 350 | 400 |
| HDCPH021120450 | 12 | 400 | 450 |
| HDCPH021120600 | 12 | 550 | 600 |
| HDCPH021120800 | 12 | 750 | 800 |
| HDCPH021121000 | 12 | 950 | 1000 |
| HDCPH021127160 | 12.7 | 110 | 160 |
| HDCPH021127210 | 12.7 | 160 | 210 |
| HDCPH021127260 | 12.7 | 210 | 260 |
| HDCPH021127310 | 12.7 | 260 | 310 |
| HDCPH021127400 | 12.7 | 350 | 400 |
| HDCPH021127450 | 12.7 | 400 | 450 |
| HDCPH021127600 | 12.7 | 550 | 600 |
| HDCPH021127800 | 12.7 | 750 | 800 |
| HDCPH021130110 | 13 | 60 | 110 |
| HDCPH021130160 | 13 | 110 | 160 |
| HDCPH021130210 | 13 | 160 | 210 |
| HDCPH021130260 | 13 | 210 | 260 |
| HDCPH021130310 | 13 | 260 | 310 |
| HDCPH021130400 | 13 | 350 | 400 |
| HDCPH021130450 | 13 | 400 | 450 |
| HDCPH021140160 | 14 | 110 | 160 |
| HDCPH021140180 | 14 | 130 | 180 |
| HDCPH021140210 | 14 | 160 | 210 |
| HDCPH021140260 | 14 | 210 | 260 |
| HDCPH021140310 | 14 | 260 | 310 |
| HDCPH021140400 | 14 | 350 | 400 |
| HDCPH021140450 | 14 | 400 | 450 |
| HDCPH021140600 | 14 | 550 | 600 |
| HDCPH021140800 | 14 | 750 | 800 |
| HDCPH021141000 | 14 | 950 | 1000 |
| HDCPH021150160 | 15 | 110 | 160 |
| HDCPH021150210 | 15 | 160 | 210 |
| HDCPH021150260 | 15 | 210 | 260 |
| HDCPH021150310 | 15 | 260 | 310 |
| HDCPH021150400 | 15 | 350 | 400 |
| HDCPH021150450 | 15 | 400 | 450 |
| HDCPH021160160 | 16 | 110 | 160 |
| HDCPH021160180 | 16 | 130 | 180 |
| HDCPH021160210 | 16 | 160 | 210 |
| HDCPH021160260 | 16 | 210 | 260 |
| HDCPH021160310 | 16 | 260 | 310 |
| HDCPH021160400 | 16 | 350 | 400 |
| HDCPH021160450 | 16 | 400 | 450 |
| HDCPH021160600 | 16 | 550 | 600 |
| HDCPH021160800 | 16 | 750 | 800 |
| HDCPH021161000 | 16 | 950 | 1000 |
| HDCPH021170160 | 17 | 110 | 160 |
| HDCPH021170210 | 17 | 160 | 210 |
| HDCPH021175210 | 17.5 | 160 | 210 |
| HDCPH021180160 | 18 | 110 | 160 |
| HDCPH021180210 | 18 | 160 | 210 |
| HDCPH021180260 | 18 | 210 | 260 |
| HDCPH021180310 | 18 | 260 | 310 |
| HDCPH021180400 | 18 | 350 | 400 |
| HDCPH021180450 | 18 | 400 | 450 |
| HDCPH021180600 | 18 | 550 | 600 |
| HDCPH021180800 | 18 | 750 | 800 |
| HDCPH021181000 | 18 | 950 | 1000 |
| HDCPH021190210 | 18 | 160 | 210 |
| HDCPH021190260 | 19 | 210 | 260 |
| HDCPH021190310 | 19 | 260 | 310 |
| HDCPH021190400 | 19 | 350 | 400 |
| HDCPH021190450 | 19 | 400 | 450 |
| HDCPH021190600 | 19 | 550 | 600 |
| HDCPH021195260 | 19 | 210 | 260 |
| HDCPH021195310 | 19 | 260 | 310 |
| HDCPH021200210 | 20 | 160 | 210 |
| HDCPH021200260 | 20 | 210 | 260 |
| HDCPH021200310 | 20 | 260 | 310 |
| HDCPH021200400 | 20 | 350 | 400 |
| HDCPH021200450 | 20 | 410 | 450 |
| HDCPH021200600 | 20 | 550 | 600 |
| HDCPH021200800 | 20 | 750 | 800 |
| HDCPH021201000 | 20 | 950 | 1000 |
| HDCPH021220210 | 22 | 160 | 210 |
| HDCPH021220260 | 22 | 210 | 260 |
| HDCPH021220310 | 22 | 260 | 310 |
| HDCPH021220400 | 22 | 350 | 400 |
| HDCPH021220450 | 22 | 400 | 450 |
| HDCPH021220600 | 22 | 550 | 600 |
| HDCPH021220800 | 22 | 750 | 800 |
| HDCPH021230450 | 23 | 400 | 450 |
| HDCPH021240260 | 24 | 210 | 260 |
| HDCPH021240310 | 24 | 260 | 310 |
| HDCPH021240400 | 24 | 350 | 400 |
| HDCPH021240450 | 24 | 400 | 450 |
| HDCPH021240600 | 24 | 550 | 600 |
| HDCPH021240800 | 24 | 750 | 800 |
| HDCPH021250260 | 25 | 210 | 260 |
| HDCPH021250310 | 25 | 260 | 310 |
| HDCPH021250400 | 25 | 350 | 400 |
| HDCPH021250450 | 25 | 400 | 450 |
| HDCPH021250600 | 25 | 550 | 600 |
| HDCPH021250800 | 25 | 750 | 800 |
| HDCPH021251000 | 25 | 950 | 1000 |
| HDCPH021260260 | 26 | 210 | 260 |
| HDCPH021260310 | 26 | 260 | 310 |
| HDCPH021260400 | 26 | 350 | 400 |
| HDCPH021260450 | 26 | 400 | 450 |
| HDCPH021280260 | 28 | 210 | 260 |
| HDCPH021280450 | 28 | 400 | 450 |
