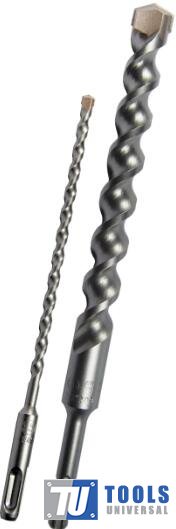

- Hammer drill bit SDS-plus
- SERIES NO: HDDPU020
- QUALITY RANK: MPP
- PACK TYPE: PVC BAGCOLOR BOXDOUBLE BLISTERSKIN PACKSINGLE BLISTER
- BRAND APPLICATION: OEM BRAND
- APPLICATIONS: TO DRILL VARIOUS CONCRETEBRICKSTONEMASONRY BUILDING MATERIALSETC
- CERTIFCATE: PGMISO9001
For all concrete, brick and stone applications.
Effective removal of dust thanks to aggressive tip and spiral design.
Certified by the Prufgemeinschaft Mauerbohrer(PGM) in accordance with the requirements of the Deutsches Institute fur
Bautechnik(DIBt).
German technology on automatic-copper soldering guarantees the best durability of carbide in drilling work.
Long service life and low probability of breakage thanks to the highly effective technique of hardening by blasting.
| ITEM NO. | DIAMETER(MM) | WORKING LENGTH(MM) | OVERALL LENGTH(MM) |
| HDDPU020040110 | 4 | 60 | 110 |
| HDDPU020040160 | 4 | 110 | 160 |
| HDDPU020040180 | 4 | 130 | 180 |
| HDDPU020050110 | 5 | 60 | 110 |
| HDDPU020050160 | 5 | 110 | 160 |
| HDDPU020050180 | 5 | 130 | 180 |
| HDDPU020050210 | 5 | 160 | 210 |
| HDDPU020050260 | 5 | 210 | 260 |
| HDDPU020050310 | 5 | 260 | 310 |
| HDDPU020050450 | 5 | 400 | 450 |
| HDDPU020055110 | 5.5 | 60 | 110 |
| HDDPU020055160 | 5.5 | 110 | 160 |
| HDDPU020055210 | 5.5 | 160 | 210 |
| HDDPU020055260 | 5.5 | 210 | 260 |
| HDDPU020060110 | 6 | 60 | 110 |
| HDDPU020060160 | 6 | 110 | 160 |
| HDDPU020060180 | 6 | 130 | 180 |
| HDDPU020060210 | 6 | 160 | 210 |
| HDDPU020060260 | 6 | 210 | 260 |
| HDDPU020060310 | 6 | 260 | 310 |
| HDDPU020060350 | 6 | 300 | 350 |
| HDDPU020060450 | 6 | 400 | 450 |
| HDDPU020065110 | 6.5 | 60 | 110 |
| HDDPU020065160 | 6.5 | 110 | 160 |
| HDDPU020065180 | 6.5 | 130 | 180 |
| HDDPU020065210 | 6.5 | 160 | 210 |
| HDDPU020065260 | 6.5 | 210 | 260 |
| HDDPU020065310 | 6.5 | 260 | 310 |
| HDDPU020065450 | 6.5 | 400 | 450 |
| HDDPU020065550 | 6.5 | 500 | 550 |
| HDDPU020070110 | 7 | 60 | 110 |
| HDDPU020070160 | 7 | 110 | 160 |
| HDDPU020070210 | 7 | 160 | 210 |
| HDDPU020080110 | 8 | 60 | 110 |
| HDDPU020080160 | 8 | 110 | 160 |
| HDDPU020080180 | 8 | 130 | 180 |
| HDDPU020080210 | 8 | 160 | 210 |
| HDDPU020080260 | 8 | 210 | 260 |
| HDDPU020080310 | 8 | 160 | 310 |
| HDDPU020080450 | 8 | 400 | 450 |
| HDDPU020080600 | 8 | 550 | 600 |
| HDDPU020090110 | 9 | 60 | 110 |
| HDDPU020090160 | 9 | 110 | 160 |
| HDDPU020090210 | 9 | 160 | 210 |
| HDDPU020090260 | 9 | 210 | 260 |
| HDDPU020090310 | 9 | 260 | 310 |
| HDDPU020090450 | 9 | 400 | 450 |
| HDDPU020095110 | 9.5 | 60 | 110 |
| HDDPU020095160 | 9.5 | 110 | 160 |
| HDDPU020095210 | 9.5 | 160 | 210 |
| HDDPU020095260 | 9.5 | 210 | 260 |
| HDDPU020095310 | 9.5 | 260 | 310 |
| HDDPU020095450 | 9.5 | 400 | 450 |
| HDDPU020095600 | 9.5 | 550 | 600 |
| HDDPU020100110 | 10 | 60 | 110 |
| HDDPU020100160 | 10 | 110 | 160 |
| HDDPU020100180 | 10 | 130 | 180 |
| HDDPU020100210 | 10 | 160 | 210 |
| HDDPU020100260 | 10 | 210 | 260 |
| HDDPU020100350 | 10 | 300 | 350 |
| HDDPU020100410 | 10 | 360 | 410 |
| HDDPU020100600 | 10 | 550 | 600 |
| HDDPU020100800 | 10 | 750 | 800 |
| HDDPU020101000 | 10 | 950 | 1000 |
| HDDPU020110160 | 11 | 110 | 160 |
| HDDPU020110210 | 11 | 160 | 210 |
| HDDPU020110260 | 11 | 210 | 260 |
| HDDPU020110310 | 11 | 260 | 310 |
| HDDPU020110450 | 11 | 400 | 450 |
| HDDPU020120110 | 12 | 60 | 110 |
| HDDPU020120160 | 12 | 110 | 160 |
| HDDPU020120210 | 12 | 160 | 210 |
| HDDPU020120260 | 12 | 210 | 260 |
| HDDPU020120310 | 12 | 260 | 310 |
| HDDPU020120400 | 12 | 350 | 400 |
| HDDPU020120450 | 12 | 400 | 450 |
| HDDPU020120600 | 12 | 550 | 600 |
| HDDPU020120800 | 12 | 750 | 800 |
| HDDPU020121000 | 12 | 950 | 1000 |
| HDDPU020127160 | 12.7 | 110 | 160 |
| HDDPU020127210 | 12.7 | 160 | 210 |
| HDDPU020127260 | 12.7 | 210 | 260 |
| HDDPU020127310 | 12.7 | 260 | 310 |
| HDDPU020127400 | 12.7 | 350 | 400 |
| HDDPU020127450 | 12.7 | 400 | 450 |
| HDDPU020127600 | 12.7 | 550 | 600 |
| HDDPU020127800 | 12.7 | 750 | 800 |
| HDDPU020130110 | 13 | 60 | 110 |
| HDDPU020130160 | 13 | 110 | 160 |
| HDDPU020130210 | 13 | 160 | 210 |
| HDDPU020130260 | 13 | 210 | 260 |
| HDDPU020130310 | 13 | 260 | 310 |
| HDDPU020130400 | 13 | 350 | 400 |
| HDDPU020130450 | 13 | 400 | 450 |
| HDDPU020140160 | 14 | 110 | 160 |
| HDDPU020140180 | 14 | 130 | 180 |
| HDDPU020140210 | 14 | 160 | 210 |
| HDDPU020140260 | 14 | 210 | 260 |
| HDDPU020140310 | 14 | 260 | 310 |
| HDDPU020140400 | 14 | 350 | 400 |
| HDDPU020140450 | 14 | 400 | 450 |
| HDDPU020140600 | 14 | 550 | 600 |
| HDDPU020140800 | 14 | 750 | 800 |
| HDDPU020141000 | 14 | 950 | 1000 |
| HDDPU020150160 | 15 | 110 | 160 |
| HDDPU020150210 | 15 | 160 | 210 |
| HDDPU020150260 | 15 | 210 | 260 |
| HDDPU020150310 | 15 | 260 | 310 |
| HDDPU020150400 | 15 | 350 | 400 |
| HDDPU020150450 | 15 | 400 | 450 |
| HDDPU020160160 | 16 | 110 | 160 |
| HDDPU020160180 | 16 | 130 | 180 |
| HDDPU020160210 | 16 | 160 | 210 |
| HDDPU020160260 | 16 | 210 | 260 |
| HDDPU020160310 | 16 | 260 | 310 |
| HDDPU020160400 | 16 | 350 | 400 |
| HDDPU020160450 | 16 | 400 | 450 |
| HDDPU020160600 | 16 | 550 | 600 |
| HDDPU020160800 | 16 | 750 | 800 |
| HDDPU020161000 | 16 | 950 | 1000 |
| HDDPU020170160 | 17 | 110 | 160 |
| HDDPU020170210 | 17 | 160 | 210 |
| HDDPU020175210 | 17.5 | 160 | 210 |
| HDDPU020180160 | 18 | 110 | 160 |
| HDDPU020180210 | 18 | 160 | 210 |
| HDDPU020180260 | 18 | 210 | 260 |
| HDDPU020180310 | 18 | 260 | 310 |
| HDDPU020180400 | 18 | 350 | 400 |
| HDDPU020180450 | 18 | 400 | 450 |
| HDDPU020180600 | 18 | 550 | 600 |
| HDDPU020180800 | 18 | 750 | 800 |
| HDDPU020181000 | 18 | 950 | 1000 |
| HDDPU020190210 | 18 | 160 | 210 |
| HDDPU020190260 | 19 | 210 | 260 |
| HDDPU020190310 | 19 | 260 | 310 |
| HDDPU020190400 | 19 | 350 | 400 |
| HDDPU020190450 | 19 | 400 | 450 |
| HDDPU020190600 | 19 | 550 | 600 |
| HDDPU020195260 | 19 | 210 | 260 |
| HDDPU020195310 | 19 | 260 | 310 |
| HDDPU020200210 | 20 | 160 | 210 |
| HDDPU020200260 | 20 | 210 | 260 |
| HDDPU020200310 | 20 | 260 | 310 |
| HDDPU020200400 | 20 | 350 | 400 |
| HDDPU020200450 | 20 | 410 | 450 |
| HDDPU020200600 | 20 | 550 | 600 |
| HDDPU020200800 | 20 | 750 | 800 |
| HDDPU020201000 | 20 | 950 | 1000 |
| HDDPU020220210 | 22 | 160 | 210 |
| HDDPU020220260 | 22 | 210 | 260 |
| HDDPU020220310 | 22 | 260 | 310 |
| HDDPU020220400 | 22 | 350 | 400 |
| HDDPU020220450 | 22 | 400 | 450 |
| HDDPU020220600 | 22 | 550 | 600 |
| HDDPU020220800 | 22 | 750 | 800 |
| HDDPU020230450 | 23 | 400 | 450 |
| HDDPU020240260 | 24 | 210 | 260 |
| HDDPU020240310 | 24 | 260 | 310 |
| HDDPU020240400 | 24 | 350 | 400 |
| HDDPU020240450 | 24 | 400 | 450 |
| HDDPU020240600 | 24 | 550 | 600 |
| HDDPU020240800 | 24 | 750 | 800 |
| HDDPU020250260 | 25 | 210 | 260 |
| HDDPU020250310 | 25 | 260 | 310 |
| HDDPU020250400 | 25 | 350 | 400 |
| HDDPU020250450 | 25 | 400 | 450 |
| HDDPU020250600 | 25 | 550 | 600 |
| HDDPU020250800 | 25 | 750 | 800 |
| HDDPU020251000 | 25 | 950 | 1000 |
| HDDPU020260260 | 26 | 210 | 260 |
| HDDPU020260310 | 26 | 260 | 310 |
| HDDPU020260400 | 26 | 350 | 400 |
| HDDPU020260450 | 26 | 400 | 450 |
| HDDPU020280260 | 28 | 210 | 260 |
| HDDPU020280450 | 28 | 400 | 450 |
