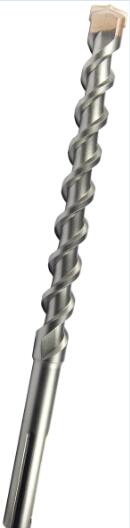

- Hammer drill bit SDS-max
- SERIES NO: HDCMH020
- QUALITY RANK: HPP
- PACK TYPE: CLIP HANGERPVC BAGPLASTIC TUBE
- BRAND APPLICATION: OEM BRAND
- APPLICATIONS: TO DRILL VARIOUS CONCRETE BRICK MASONRY BUILDING MATERIALS
- CERTIFCATE: PGMISO9001
For all concrete, brick and stone applications.
Effective removal of dust thanks to aggressive tip and spiral design.
German technology on automatic-copper soldering guarantees the best durability of carbide in drilling work.
Long service life and low probability of breakage thanks to the highly effective technique of hardening by blasting.
| ITEM NO. | DIAMETER(MM) | WORKING LENGTH(MM) | OVERALL LENGTH(MM) |
| HDCMH020120340 | 12 | 200 | 340 |
| HDCMH020120540 | 12 | 400 | 540 |
| HDCMH020120690 | 12 | 550 | 690 |
| HDCMH020130340 | 13 | 200 | 340 |
| HDCMH020130540 | 13 | 400 | 540 |
| HDCMH020140340 | 14 | 200 | 340 |
| HDCMH020140540 | 14 | 400 | 540 |
| HDCMH020140690 | 14 | 550 | 690 |
| HDCMH020150340 | 15 | 200 | 340 |
| HDCMH020150540 | 15 | 400 | 540 |
| HDCMH020150690 | 15 | 550 | 690 |
| HDCMH020160340 | 16 | 200 | 340 |
| HDCMH020160540 | 16 | 400 | 540 |
| HDCMH020160920 | 16 | 800 | 920 |
| HDCMH020180340 | 18 | 200 | 340 |
| HDCMH020180540 | 18 | 400 | 540 |
| HDCMH020180920 | 18 | 800 | 920 |
| HDCMH020190340 | 19 | 200 | 340 |
| HDCMH020190540 | 19 | 400 | 540 |
| HDCMH020190920 | 19 | 800 | 920 |
| HDCMH020200340 | 20 | 200 | 340 |
| HDCMH020200540 | 20 | 400 | 540 |
| HDCMH020200920 | 20 | 800 | 920 |
| HDCMH020220340 | 22 | 200 | 340 |
| HDCMH020220540 | 22 | 400 | 540 |
| HDCMH020220920 | 22 | 800 | 920 |
| HDCMH020221320 | 22 | 1200 | 1320 |
| HDCMH020240340 | 24 | 200 | 340 |
| HDCMH020240540 | 24 | 400 | 540 |
| HDCMH020250340 | 25 | 200 | 340 |
| HDCMH020250540 | 25 | 400 | 540 |
| HDCMH020250920 | 25 | 800 | 920 |
| HDCMH020251320 | 25 | 1200 | 1320 |
| HDCMH020260340 | 26 | 200 | 340 |
| HDCMH020260540 | 26 | 400 | 540 |
| HDCMH020280370 | 28 | 250 | 370 |
| HDCMH020280570 | 28 | 450 | 570 |
| HDCMH020300370 | 30 | 250 | 370 |
| HDCMH020300570 | 30 | 450 | 570 |
| HDCMH020320370 | 32 | 250 | 370 |
| HDCMH020320570 | 32 | 450 | 570 |
| HDCMH020320920 | 32 | 800 | 920 |
| HDCMH020321320 | 32 | 1200 | 1320 |
| HDCMH020350370 | 35 | 250 | 370 |
| HDCMH020350570 | 35 | 450 | 570 |
| HDCMH020350670 | 35 | 550 | 670 |
| HDCMH020380370 | 38 | 250 | 370 |
| HDCMH020380570 | 38 | 450 | 570 |
| HDCMH020380670 | 38 | 550 | 670 |
| HDCMH020400370 | 40 | 350 | 370 |
| HDCMH020400570 | 40 | 450 | 570 |
| HDCMH020400920 | 40 | 800 | 920 |
| HDCMH020401320 | 40 | 1200 | 1320 |
| HDCMH020420370 | 42 | 250 | 370 |
| HDCMH020420570 | 42 | 450 | 570 |
| HDCMH020420920 | 42 | 800 | 920 |
| HDCMH020440370 | 44 | 250 | 370 |
| HDCMH020440570 | 44 | 450 | 570 |
| HDCMH020440920 | 44 | 800 | 920 |
| HDCMH020450370 | 45 | 250 | 370 |
| HDCMH020450570 | 45 | 450 | 570 |
| HDCMH020450920 | 45 | 800 | 920 |
| HDCMH020451320 | 45 | 1200 | 1320 |
| HDCMH020500370 | 50 | 250 | 370 |
| HDCMH020500570 | 50 | 450 | 570 |
| HDCMH020500920 | 50 | 800 | 920 |
| HDCMH020501320 | 50 | 1200 | 1320 |
| HDCMH020520370 | 52 | 250 | 370 |
| HDCMH020520570 | 52 | 450 | 570 |
| HDCMH020520920 | 52 | 800 | 920 |
