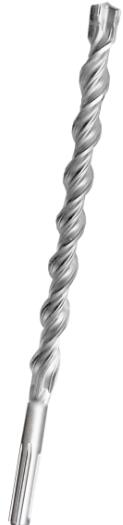

- Hammer drill bit SDS-max
- SERIES NO: HDYMS040
- QUALITY RANK: MPP
- PACK TYPE: CLIP HANGERPVC BAGPLASTIC TUBE
- BRAND APPLICATION: OEM BRAND
- APPLICATIONS: TO DRILL VARIOUS CONCRETE BRICK MASONRY BUILDING MATERIALS
- CERTIFCATE: PGMISO9001
4Cross cutter Extra long life and big scale cutting For drilling all concrete, brick and stone applications.
Effective removal of dust thanks to aggressive tip and spiral design.
German technology on automatic-copper soldering guarantees the best durability of carbide in drilling work.
Long service life and low probability of breakage thanks to the highly effective technique of hardening by blasting.
| ITEM NO. | DIAMETER(MM) | WORKING LENGTH(MM) | OVERALL LENGTH(MM) |
| HDYMS040120340 | 12 | 200 | 340 |
| HDYMS040120540 | 12 | 400 | 540 |
| HDYMS040120690 | 12 | 550 | 690 |
| HDYMS040130340 | 13 | 200 | 340 |
| HDYMS040130540 | 13 | 400 | 540 |
| HDYMS040140340 | 14 | 200 | 340 |
| HDYMS040140540 | 14 | 400 | 540 |
| HDYMS040140690 | 14 | 550 | 690 |
| HDYMS040150340 | 15 | 200 | 340 |
| HDYMS040150540 | 15 | 400 | 540 |
| HDYMS040150690 | 15 | 550 | 690 |
| HDYMS040160340 | 16 | 200 | 340 |
| HDYMS040160540 | 16 | 400 | 540 |
| HDYMS040160920 | 16 | 800 | 920 |
| HDYMS040180340 | 18 | 200 | 340 |
| HDYMS040180540 | 18 | 400 | 540 |
| HDYMS040180920 | 18 | 800 | 920 |
| HDYMS040190340 | 19 | 200 | 340 |
| HDYMS040190540 | 19 | 400 | 540 |
| HDYMS040190920 | 19 | 800 | 920 |
| HDYMS040200340 | 20 | 200 | 340 |
| HDYMS040200540 | 20 | 400 | 540 |
| HDYMS040200920 | 20 | 800 | 920 |
| HDYMS040220340 | 22 | 200 | 340 |
| HDYMS040220540 | 22 | 400 | 540 |
| HDYMS040220920 | 22 | 800 | 920 |
| HDYMS040221320 | 22 | 1200 | 1320 |
| HDYMS040240340 | 24 | 200 | 340 |
| HDYMS040240540 | 24 | 400 | 540 |
| HDYMS040250340 | 25 | 200 | 340 |
| HDYMS040250540 | 25 | 400 | 540 |
| HDYMS040250920 | 25 | 800 | 920 |
| HDYMS040251320 | 25 | 1200 | 1320 |
| HDYMS040260340 | 26 | 200 | 340 |
| HDYMS040260540 | 26 | 400 | 540 |
| HDYMS040280370 | 28 | 250 | 370 |
| HDYMS040280570 | 28 | 450 | 570 |
| HDYMS040300370 | 30 | 250 | 370 |
| HDYMS040300570 | 30 | 450 | 570 |
| HDYMS040320370 | 32 | 250 | 370 |
| HDYMS040320570 | 32 | 450 | 570 |
| HDYMS040320920 | 32 | 800 | 920 |
| HDYMS040321320 | 32 | 1200 | 1320 |
| HDYMS040350370 | 35 | 250 | 370 |
| HDYMS040350570 | 35 | 450 | 570 |
| HDYMS040350670 | 35 | 550 | 670 |
| HDYMS040380370 | 38 | 250 | 370 |
| HDYMS040380570 | 38 | 450 | 570 |
| HDYMS040380670 | 38 | 550 | 670 |
| HDYMS040400370 | 40 | 350 | 370 |
| HDYMS040400570 | 40 | 450 | 570 |
| HDYMS040400920 | 40 | 800 | 920 |
| HDYMS040401320 | 40 | 1200 | 1320 |
| HDYMS040420370 | 42 | 250 | 370 |
| HDYMS040420570 | 42 | 450 | 570 |
| HDYMS040420920 | 42 | 800 | 920 |
| HDYMS040440370 | 44 | 250 | 370 |
| HDYMS040440570 | 44 | 450 | 570 |
| HDYMS040440920 | 44 | 800 | 920 |
| HDYMS040450370 | 45 | 250 | 370 |
| HDYMS040450570 | 45 | 450 | 570 |
| HDYMS040450920 | 45 | 800 | 920 |
| HDYMS040451320 | 45 | 1200 | 1320 |
| HDYMS040500370 | 50 | 250 | 370 |
| HDYMS040500570 | 50 | 450 | 570 |
| HDYMS040500920 | 50 | 800 | 920 |
| HDYMS040501320 | 50 | 1200 | 1320 |
| HDYMS040520370 | 52 | 250 | 370 |
| HDYMS040520570 | 52 | 450 | 570 |
| HDYMS040520920 | 52 | 800 | 920 |
