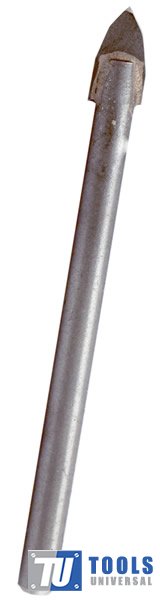

- TCT spear porcelain drill bit
- SERIES NO: 6010
- QUALITY RANK: MPP+
- PACK TYPE: PVC BAGPLASTIC TUBESANDWICH BLISTERDOUBLE BLISTERSKIN PAC
- BRAND APPLICATION: OEM BRAND
- APPLICATIONS: TO DRILL VARIOUS PORCELAINCERAMICTILEGLASS ETC.
- CERTIFCATE: PGMISO9001
Step tip shape design of carbide for extreme rough tile, ceramics and porcelain drilling.
Constant sharpness is kept while drilling thanks to step cutting edge designs.
Precision cutting holes without cracked edges to keep whole process smooth.
| ITEM NO. | DIAMETER(MM) | Diameter(inch) | total length(mm) | Diameter/Type of shank |
| 03065 | 3 | 1/8" | 65 | 10 |
| 04065 | 4 | 5/32" | 65 | 10 |
| 05070 | 5 | 3/16" | 70 | 10 |
| 05575 | 5.5 | 7/32" | 75 | 10 |
| 06075 | 6 | 15/64" | 75 | 10 |
| 06580 | 6.5 | 1/4" | 80 | 10 |
| 07080 | 7 | 9/32" | 80 | 10 |
| 08080 | 8 | 5/16" | 80 | 10 |
| 09100 | 9 | 23/64" | 100 | 10 |
| 10100 | 10 | 25/64" | 100 | 10 |
| 11100 | 11 | 7/16" | 100 | 10 |
| 12100 | 12 | 15/32" | 100 | 10 |
| 13100 | 13 | 1/2" | 100 | 10 |
| 14100 | 14 | 9/16" | 100 | 10 |
| 15100 | 15 | 19/32" | 100 | 10 |
| 16100 | 16 | 5/8" | 100 | 10 |
| 18100 | 18 | 23/32" | 100 | 10 |
| 20100 | 20 | 25/32" | 100 | 10 |
