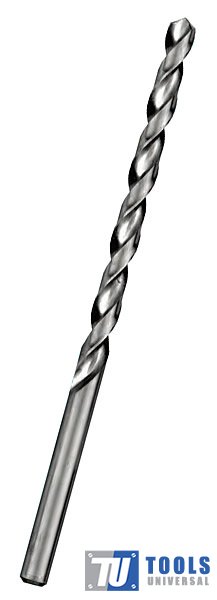

- HSS twist drill bit, M2, DIN340RN, Bright finished
- SERIES NO: 903
- QUALITY RANK: MPP
- PACK TYPE: PVC BAG,PLASTIC TUBE,SANDWICH BLISTER,DOUBLE BLISTER,SKIN PAC
- BRAND APPLICATION: OEM BRAND
- APPLICATIONS: TO DRILL VARIOUS STEEL，ALLOY，WOOD，ETC
- CERTIFCATE: PGM,ISO9001
Ideal for drilling in alloyed and unalloyed steel.
Precision point to DIN 340 RN for outstanding hole dimensional accuracy.
Split point and 135°point angle for optimum centering when starting.
Strengthened web, making them highly resistant to breakage.
| ITEM NO. | DIAMETER(MM) | WORKING LENGTH(MM) | OVERALL LENGTH(MM) |
| 3400031 | 0.3 | 33 | 56 |
| 3400041 | 0.4 | 33 | 56 |
| 3400051 | 0.5 | 33 | 56 |
| 3400061 | 0.6 | 33 | 56 |
| 3400071 | 0.7 | 33 | 56 |
| 3400081 | 0.8 | 33 | 56 |
| 3400091 | 0.9 | 33 | 56 |
| 3400101 | 1.0 | 33 | 56 |
| 3400111 | 1.1 | 37 | 60 |
| 3400121 | 1.2 | 41 | 65 |
| 3400131 | 1.3 | 41 | 65 |
| 3400141 | 1.4 | 45 | 70 |
| 3400151 | 1.5 | 45 | 70 |
| 3400161 | 1.6 | 50 | 76 |
| 3400171 | 1.7 | 50 | 76 |
| 3400181 | 1.8 | 53 | 80 |
| 3400191 | 1.9 | 53 | 80 |
| 3400201 | 2.0 | 56 | 85 |
| 3400211 | 2.1 | 56 | 85 |
| 3400221 | 2.2 | 56 | 85 |
| 3400231 | 2.3 | 56 | 85 |
| 3400241 | 2.4 | 62 | 95 |
| 3400251 | 2.5 | 62 | 95 |
| 3400261 | 2.6 | 62 | 95 |
| 3400271 | 2.7 | 66 | 100 |
| 3400281 | 2.8 | 66 | 100 |
| 3400291 | 2.9 | 66 | 100 |
| 3400301 | 3.0 | 66 | 100 |
| 3400311 | 3.1 | 69 | 106 |
| 3400321 | 3.2 | 69 | 106 |
| 3400331 | 3.3 | 69 | 106 |
| 3400341 | 3.4 | 73 | 112 |
| 3400351 | 3.5 | 73 | 112 |
| 3400361 | 3.6 | 73 | 112 |
| 3400371 | 3.7 | 73 | 112 |
| 3400381 | 3.8 | 78 | 119 |
| 3400391 | 3.9 | 78 | 119 |
| 3400401 | 4.0 | 78 | 119 |
| 3400411 | 4.1 | 78 | 119 |
| 3400421 | 4.2 | 78 | 119 |
| 3400431 | 4.3 | 82 | 126 |
| 3400441 | 4.4 | 82 | 126 |
| 3400451 | 4.5 | 82 | 126 |
| 3400461 | 4.6 | 82 | 126 |
| 3400471 | 4.7 | 82 | 126 |
| 3400481 | 4.8 | 87 | 132 |
| 3400491 | 4.9 | 87 | 132 |
| 3400501 | 5.0 | 87 | 132 |
| 3400511 | 5.1 | 87 | 132 |
| 3400521 | 5.2 | 87 | 132 |
| 3400531 | 5.3 | 87 | 132 |
| 3400541 | 5.4 | 91 | 139 |
| 3400551 | 5.5 | 91 | 139 |
| 3400561 | 5.6 | 91 | 139 |
| 3400571 | 5.7 | 91 | 139 |
| 3400581 | 5.8 | 91 | 139 |
| 3400591 | 5.9 | 91 | 139 |
| 3400601 | 6.0 | 91 | 139 |
| 3400611 | 6.1 | 97 | 148 |
| 3400621 | 6.2 | 97 | 148 |
| 3400631 | 6.3 | 97 | 148 |
| 3400641 | 6.4 | 97 | 148 |
| 3400651 | 6.5 | 97 | 148 |
| 3400661 | 6.6 | 97 | 148 |
| 3400671 | 6.7 | 97 | 148 |
| 3400681 | 6.8 | 102 | 156 |
| 3400691 | 6.9 | 102 | 156 |
| 3400701 | 7.0 | 102 | 156 |
| 3400711 | 7.1 | 102 | 156 |
| 3400721 | 7.2 | 102 | 156 |
| 3400731 | 7.3 | 102 | 156 |
| 3400741 | 7.4 | 102 | 156 |
| 3400751 | 7.5 | 102 | 156 |
| 3400761 | 7.6 | 109 | 165 |
| 3400771 | 7.7 | 109 | 165 |
| 3400791 | 7.9 | 109 | 165 |
| 3400801 | 8.0 | 109 | 165 |
| 3400811 | 8.1 | 109 | 165 |
| 3400821 | 8.2 | 109 | 165 |
| 3400831 | 8.3 | 109 | 165 |
| 3400841 | 8.4 | 109 | 165 |
| 3400851 | 8.5 | 109 | 165 |
| 3400861 | 8.6 | 115 | 175 |
| 3400871 | 8.7 | 115 | 175 |
| 3400881 | 8.8 | 115 | 175 |
| 3400891 | 8.9 | 115 | 175 |
| 3400901 | 9.0 | 115 | 175 |
| 3400911 | 9.1 | 115 | 175 |
| 3400921 | 9.2 | 115 | 175 |
| 3400931 | 9.3 | 115 | 175 |
| 3400941 | 9.4 | 115 | 175 |
| 3400951 | 9.5 | 115 | 175 |
| 3400961 | 9.6 | 121 | 184 |
| 3400971 | 9.7 | 121 | 184 |
| 3400981 | 9.8 | 121 | 184 |
| 3400991 | 9.9 | 121 | 184 |
| 3401001 | 10.0 | 121 | 184 |
| 3401021 | 10.2 | 121 | 184 |
| 3401051 | 10.5 | 121 | 184 |
| 3401101 | 11.0 | 128 | 195 |
| 3401151 | 11.5 | 128 | 195 |
| 3401201 | 12.0 | 134 | 205 |
| 3401251 | 12.5 | 134 | 205 |
| 3401301 | 13.0 | 134 | 205 |
| 3401351 | 13.5 | 140 | 214 |
| 3401401 | 14.0 | 140 | 214 |
| 3401451 | 14.5 | 144 | 220 |
| 3401501 | 15.0 | 144 | 220 |
| 3401551 | 15.5 | 149 | 227 |
| 3401601 | 16.0 | 149 | 227 |
| 3401651 | 16.5 | 154 | 235 |
| 3401701 | 17.0 | 154 | 235 |
| 3401751 | 17.5 | 158 | 241 |
| 3401801 | 18.0 | 158 | 241 |
| 3401851 | 18.5 | 162 | 247 |
| 3401901 | 19.0 | 162 | 247 |
| 3401951 | 19.5 | 166 | 254 |
| 3402001 | 20.0 | 166 | 254 |
