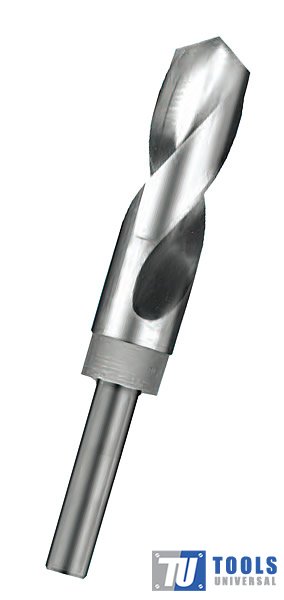

- HSS twist blacksmith drill bit,Bright finished
- SERIES NO: 904
- QUALITY RANK: MPP
- PACK TYPE: PACK TYPE:PVC BAGPLASTIC TUBESANDWICH BLISTER DOUBLE BLISTERSKIN PACK
- BRAND APPLICATION: OEM BRAND
- APPLICATIONS: TO DRILL VARIOUS STEEL，ALLOY，WOOD，ETC
- CERTIFCATE: PGM,ISO9001
Shank form and tool length optimised for use with pillar-type drills.
Ground HSS bit with maximum precision.
Ideal for drilling in alloyed and unalloyed steel up to 1100N/mm2.
Web thinning with 118° point angle for maximum service life.
| ITEM NO. | DIAMETER(MM) | WORKING LENGTH(MM) | Total Length（MM） | OVERALL LENGTH(MM) |
| 1021001 | 10.0 | 87 | 133 | 8 |
| 1021051 | 10.5 | 87 | 133 | 8 |
| 1021101 | 11.0 | 94 | 142 | 8 |
| 1021151 | 11.5 | 94 | 142 | 8 |
| 1021201 | 12.0 | 101 | 151 | 8 |
| 1021251 | 12.5 | 101 | 151 | 8 |
| 1021301 | 13.0 | 101 | 151 | 8 |
| 1021351 | 13.5 | 108 | 160 | 10 |
| 1021401 | 14.0 | 108 | 160 | 10 |
| 1021451 | 14.5 | 114 | 169 | 10 |
| 1021501 | 15.0 | 114 | 169 | 10 |
| 1021551 | 15.5 | 120 | 178 | 10 |
| 1021601 | 16.0 | 120 | 178 | 10 |
| 1021651 | 16.5 | 125 | 184 | 13 |
| 1021701 | 17.0 | 125 | 184 | 13 |
| 1021751 | 17.5 | 130 | 191 | 13 |
| 1021801 | 18.0 | 130 | 191 | 13 |
| 1021851 | 18.5 | 135 | 198 | 13 |
| 1021901 | 19.0 | 135 | 198 | 13 |
| 1021951 | 19.5 | 140 | 205 | 13 |
| 1022001 | 20.0 | 140 | 205 | 13 |
| 1022201 | 22.0 | 150 | 219 | 13 |
| 1022501 | 25.0 | 170 | 246 | 13 |
| 1021002 | 10.0 | 76 | 165 | 10 |
| 1021052 | 10.5 | 76 | 165 | 10 |
| 1021102 | 11.0 | 76 | 165 | 10 |
| 1021152 | 11.5 | 76 | 165 | 10 |
| 1021202 | 12.0 | 76 | 165 | 10 |
| 1021252 | 12.5 | 76 | 165 | 10 |
| 1021302 | 13.0 | 76 | 165 | 1/2" |
| 1021352 | 13.5 | 76 | 165 | 1/2" |
| 1021402 | 14.0 | 76 | 165 | 1/2" |
| 1021452 | 14.5 | 76 | 165 | 1/2" |
| 1021502 | 15.0 | 76 | 165 | 1/2" |
| 1021552 | 15.5 | 76 | 165 | 1/2" |
| 1021602 | 16.0 | 76 | 165 | 1/2" |
| 1021652 | 16.5 | 76 | 165 | 1/2" |
| 1021702 | 17.0 | 76 | 165 | 1/2" |
| 1021752 | 17.5 | 76 | 165 | 1/2" |
| 1021802 | 18.0 | 76 | 165 | 1/2" |
| 1021852 | 18.5 | 76 | 165 | 1/2" |
| 1021902 | 19.0 | 76 | 165 | 1/2" |
| 1022002 | 20.0 | 76 | 165 | 1/2" |
| 1022202 | 22.0 | 76 | 165 | 1/2" |
| 1022502 | 25.0 | 76 | 165 | 1/2" |
| 1020916 | 9/16" | 76 | 165 | 1/2" |
| 1020508 | 5/8" | 76 | 165 | 1/2" |
| 1021116 | 11/16" | 76 | 165 | 1/2" |
| 1020304 | 3/4" | 76 | 165 | 1/2" |
| 1021316 | 13/16" | 76 | 165 | 1/2" |
| 1020708 | 7/8" | 76 | 165 | 1/2" |
| 1021516 | 15/16" | 76 | 165 | 1/2" |
| 1020101 | 1" | 76 | 165 | 1/2" |
| 3380561 | 5.6 | 57 | 93 | |
| 3380571 | 5.7 | 57 | 93 | |
| 3380581 | 5.8 | 57 | 93 | |
| 3380591 | 5.9 | 57 | 93 | |
| 3380601 | 6 | 57 | 93 | |
| 3380611 | 6.1 | 63 | 101 | |
| 3380621 | 6.2 | 63 | 101 | |
| 3380631 | 6.3 | 63 | 101 | |
| 3380641 | 6.4 | 63 | 101 | |
| 3380651 | 6.5 | 63 | 101 | |
| 3380661 | 6.6 | 63 | 101 | |
| 3380671 | 6.7 | 63 | 101 | |
| 3380681 | 6.8 | 69 | 109 | |
| 3380691 | 6.9 | 69 | 109 | |
| 3380701 | 7 | 69 | 109 | |
| 3380711 | 7.1 | 69 | 109 | |
| 3380721 | 7.2 | 69 | 109 | |
| 3380731 | 7.3 | 69 | 109 | |
| 3380741 | 7.4 | 69 | 109 | |
| 3380751 | 7.5 | 69 | 109 | |
| 3380761 | 7.6 | 75 | 117 | |
| 3380771 | 7.7 | 75 | 117 | |
| 3380791 | 7.9 | 75 | 117 | |
| 3380801 | 8 | 75 | 117 | |
| 3380811 | 8.1 | 75 | 117 | |
| 3380821 | 8.2 | 75 | 117 | |
| 3380831 | 8.3 | 75 | 117 | |
| 3380841 | 8.4 | 75 | 117 | |
| 3380851 | 8.5 | 75 | 117 | |
| 3380861 | 8.6 | 81 | 125 | |
| 3380871 | 8.7 | 81 | 125 | |
| 3380881 | 8.8 | 81 | 125 | |
| 3380891 | 8.9 | 81 | 125 | |
| 3380901 | 9 | 81 | 125 | |
| 3380911 | 9.1 | 81 | 125 | |
| 3380921 | 9.2 | 81 | 125 | |
| 3380931 | 9.3 | 81 | 125 | |
| 3380941 | 9.4 | 81 | 125 | |
| 3380951 | 9.5 | 81 | 125 | |
| 3380961 | 9.6 | 87 | 133 | |
| 3380971 | 9.7 | 87 | 133 | |
| 3380981 | 9.8 | 87 | 133 | |
| 3380991 | 9.9 | 87 | 133 | |
| 3381001 | 10 | 87 | 133 | |
| 3381021 | 10.2 | 87 | 133 | |
| 3381051 | 10.5 | 87 | 133 | |
| 3381101 | 11 | 94 | 142 | |
| 3381151 | 11.5 | 94 | 142 | |
| 3381201 | 12 | 101 | 151 | |
| 3381251 | 12.5 | 101 | 151 | |
| 3381301 | 13 | 101 | 151 | |
| 3381351 | 13.5 | 108 | 160 | |
| 3381401 | 14 | 108 | 160 | |
| 3381451 | 14.5 | 108 | 160 | |
| 3381501 | 15 | 108 | 160 | |
| 3381551 | 15.5 | 114 | 178 | |
| 3381601 | 16 | 114 | 178 | |
| 3381651 | 16.5 | 125 | 184 | |
| 3381701 | 17 | 125 | 184 | |
| 3381751 | 17.5 | 130 | 191 | |
| 3381801 | 18 | 130 | 191 | |
| 3381851 | 18.5 | 135 | 198 | |
| 3381901 | 19 | 135 | 198 | |
| 3381951 | 19.5 | 140 | 205 | |
| 3382001 | 20 | 140 | 205 |
