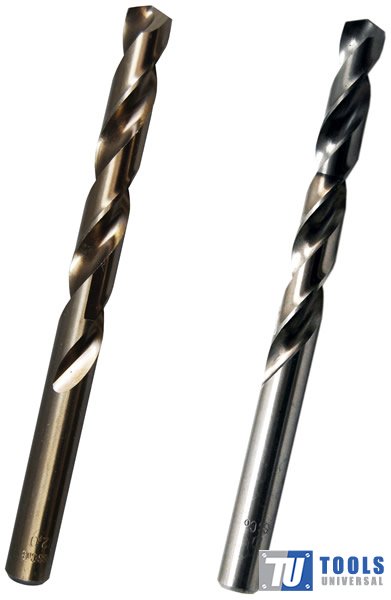

- HSS twist drill bit, M35,DIN338RN,Amber finished/HSS twist drill bit,M35,DIN338RN,CrTiAlN coated
- SERIES NO: 990/992
- QUALITY RANK: MPP
- PACK TYPE: PVC BAG,PLASTIC TUBE,SANDWICH BLISTER,DOUBLE BLISTER,SKIN PAC
- BRAND APPLICATION: OEM BRAND
- APPLICATIONS: TO DRILL VARIOUS STEEL，ALLOY，WOOD，ETC
- CERTIFCATE: PGM,ISO9001
For a large number of drill holes in high-alloy steel and stainless steel
Split point and 135° point angle for optimum, extremely accurate starting.
Use of a special HSS steel with 5% cobalt
Precision tool compliant with DIN338 RN for outstanding hole dimensional accuracy.
CrTinAlN coating increase drilling life by over 20% based on Cobalt drill ones.
| ITEM NO. | DIAMETER(MM) | WORKING LENGTH(MM) | OVERALL LENGTH(MM) |
| 3380031 | 0.3 | 3 | 19 |
| 3380041 | 0.4 | 5 | 20 |
| 3380051 | 0.5 | 6 | 22 |
| 3380061 | 0.6 | 7 | 24 |
| 3380071 | 0.7 | 9 | 28 |
| 3380081 | 0.8 | 10 | 30 |
| 3380091 | 0.9 | 11 | 32 |
| 3380101 | 1.0 | 12 | 34 |
| 3380111 | 1.1 | 14 | 36 |
| 3380121 | 1.2 | 16 | 38 |
| 3380131 | 1.3 | 16 | 38 |
| 3380141 | 1.4 | 18 | 40 |
| 3380151 | 1.5 | 18 | 40 |
| 3380161 | 1.6 | 20 | 43 |
| 3380171 | 1.7 | 20 | 43 |
| 3380181 | 1.8 | 22 | 46 |
| 3380191 | 1.9 | 22 | 46 |
| 3380201 | 2.0 | 24 | 49 |
| 3380211 | 2.1 | 24 | 49 |
| 3380221 | 2.2 | 27 | 53 |
| 3380231 | 2.3 | 27 | 53 |
| 3380241 | 2.4 | 30 | 57 |
| 3380251 | 2.5 | 30 | 57 |
| 3380261 | 2.6 | 30 | 57 |
| 3380271 | 2.7 | 33 | 61 |
| 3380281 | 2.8 | 33 | 61 |
| 3380291 | 2.9 | 33 | 61 |
| 3380301 | 3.0 | 33 | 61 |
| 3380311 | 3.1 | 36 | 65 |
| 3380321 | 3.2 | 36 | 65 |
| 3380331 | 3.3 | 36 | 65 |
| 3380341 | 3.4 | 39 | 70 |
| 3380351 | 3.5 | 39 | 70 |
| 3380361 | 3.6 | 39 | 70 |
| 3380371 | 3.7 | 39 | 70 |
| 3380381 | 3.8 | 43 | 75 |
| 3380391 | 3.9 | 43 | 75 |
| 3380401 | 4.0 | 43 | 75 |
| 3380411 | 4.1 | 43 | 75 |
| 3380421 | 4.2 | 43 | 75 |
| 3380431 | 4.3 | 47 | 80 |
| 3380441 | 4.4 | 47 | 80 |
| 3380451 | 4.5 | 47 | 80 |
| 3380461 | 4.6 | 47 | 80 |
| 3380471 | 4.7 | 47 | 80 |
| 3380481 | 4.8 | 52 | 86 |
| 3380491 | 4.9 | 52 | 86 |
| 3380501 | 5.0 | 52 | 86 |
| 3380511 | 5.1 | 52 | 86 |
| 3380521 | 5.2 | 52 | 86 |
| 3380531 | 5.3 | 52 | 86 |
| 3380541 | 5.4 | 57 | 93 |
| 3380551 | 5.5 | 57 | 93 |
| 3380561 | 5.6 | 57 | 93 |
| 3380571 | 5.7 | 57 | 93 |
| 3380581 | 5.8 | 57 | 93 |
| 3380591 | 5.9 | 57 | 93 |
| 3380601 | 6.0 | 57 | 93 |
| 3380611 | 6.1 | 63 | 101 |
| 3380621 | 6.2 | 63 | 101 |
| 3380631 | 6.3 | 63 | 101 |
| 3380641 | 6.4 | 63 | 101 |
| 3380651 | 6.5 | 63 | 101 |
| 3380661 | 6.6 | 63 | 101 |
| 3380671 | 6.7 | 63 | 101 |
| 3380681 | 6.8 | 69 | 109 |
| 3380691 | 6.9 | 69 | 109 |
| 3380701 | 7.0 | 69 | 109 |
| 3380711 | 7.1 | 69 | 109 |
| 3380721 | 7.2 | 69 | 109 |
| 3380731 | 7.3 | 69 | 109 |
| 3380741 | 7.4 | 69 | 109 |
| 3380751 | 7.5 | 69 | 109 |
| 3380761 | 7.6 | 75 | 117 |
| 3380771 | 7.7 | 75 | 117 |
| 3380791 | 7.9 | 75 | 117 |
| 3380801 | 8.0 | 75 | 117 |
| 3380811 | 8.1 | 75 | 117 |
| 3380821 | 8.2 | 75 | 117 |
| 3380831 | 8.3 | 75 | 117 |
| 3380841 | 8.4 | 75 | 117 |
| 3380851 | 8.5 | 75 | 117 |
| 3380861 | 8.6 | 81 | 125 |
| 3380871 | 8.7 | 81 | 125 |
| 3380881 | 8.8 | 81 | 125 |
| 3380891 | 8.9 | 81 | 125 |
| 3380901 | 9.0 | 81 | 125 |
| 3380911 | 9.1 | 81 | 125 |
| 3380921 | 9.2 | 81 | 125 |
| 3380931 | 9.3 | 81 | 125 |
| 3380941 | 9.4 | 81 | 125 |
| 3380951 | 9.5 | 81 | 125 |
| 3380961 | 9.6 | 87 | 133 |
| 3380971 | 9.7 | 87 | 133 |
| 3380981 | 9.8 | 87 | 133 |
| 3380991 | 9.9 | 87 | 133 |
| 3381001 | 10 | 87 | 133 |
| 3381021 | 10.2 | 87 | 133 |
| 3381051 | 10.5 | 87 | 133 |
| 3381101 | 11 | 94 | 142 |
| 3381151 | 11.5 | 94 | 142 |
| 3381201 | 12 | 101 | 151 |
| 3381251 | 12.5 | 101 | 151 |
| 3381301 | 13 | 101 | 151 |
| 3381351 | 13.5 | 108 | 160 |
| 3381401 | 14 | 108 | 160 |
| 3381451 | 14.5 | 108 | 160 |
| 3381501 | 15 | 108 | 160 |
| 3381551 | 15.5 | 114 | 178 |
| 3381601 | 16 | 114 | 178 |
| 3381651 | 16.5 | 125 | 184 |
| 3381701 | 17 | 125 | 184 |
| 3381751 | 17.5 | 130 | 191 |
| 3381801 | 18 | 130 | 191 |
| 3381851 | 18.5 | 135 | 198 |
| 3381901 | 19 | 135 | 198 |
| 3381951 | 19.5 | 140 | 205 |
| 3382001 | 20 | 140 | 205 |
